Creation and linking of nodes

The following code fragment creates a linear structure with 3 nodes containing characters.

class ListNode {
  String info;
  ListNode next;
}

public class TestList {
  public static ListNode create3NodesABC() {
    ListNode a = new ListNode();
    ListNode b = new ListNode();
    ListNode c = new ListNode();
    a.info = "A";
    a.next = b;
    b.info = "B";
    b.next = c;
    c.info = "C";
    c.next = null;
    return a;
  }
}

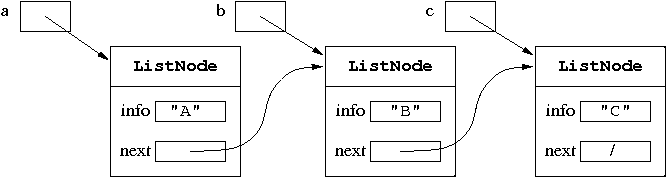

The following figure shows a representation in memory of the list created by the method above.

Note: In the following, we will use a more compact graphical representation of ListNode objects and lists. Specifically, the above list will be represented as follows.
